This medical respiratory ventilator provides stable assisted ventilation for homecare and clinical environments. Designed for long-term respiratory support, it ensures consistent airflow control, adjustable ventilation parameters, and dependable performance. Suitable for hospitals, homecare service providers, and device distributors seeking scalable respiratory care solutions.

Contact Us

title
FEATURES

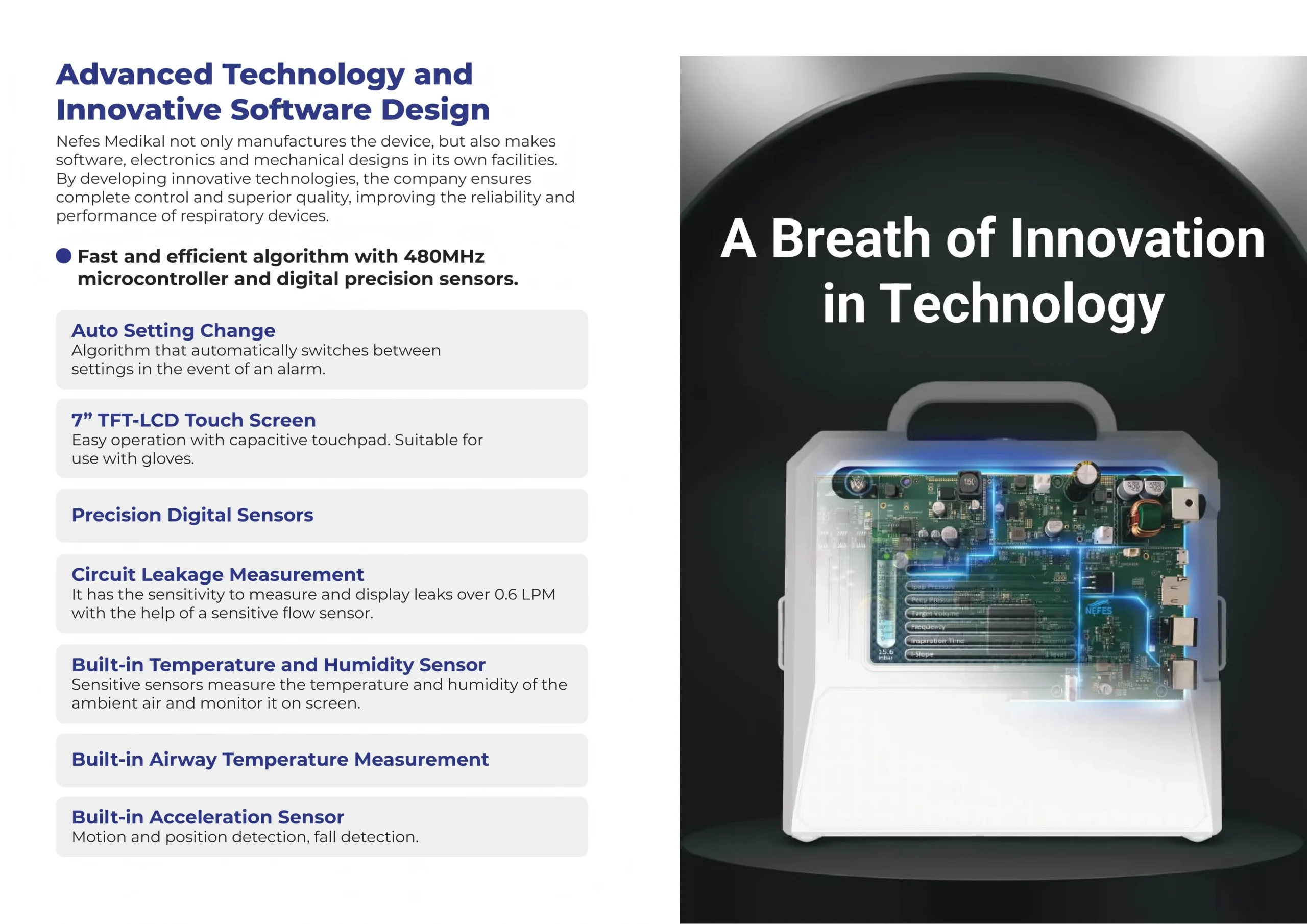

Advanced Technology and

Innovative Software Design

Auto Setting Change

Fast and efficient algorithm with 480MHz

microcontroller and digital precision sensors.

Auto Setting Change

Algorithm that automatically switches between

settings in the event of an alarm.

7” TFT-LCD Touch Screen

Easy operation with capacitive touchpad. Suitable for

use with gloves.

Precision Digital Sensors

Circuit Leakage Measurement

It has the sensitivity to measure and display leaks over 0.6 LPM

with the help of a sensitive flow sensor.

Built-in Temperature and Humidity Sensor

Sensitive sensors measure the temperature and humidity of the

ambient air and monitor it on screen.

Built-in Airway Temperature Measurement

Built-in Acceleration Sensor

Motion and position detection, fall detection.


title

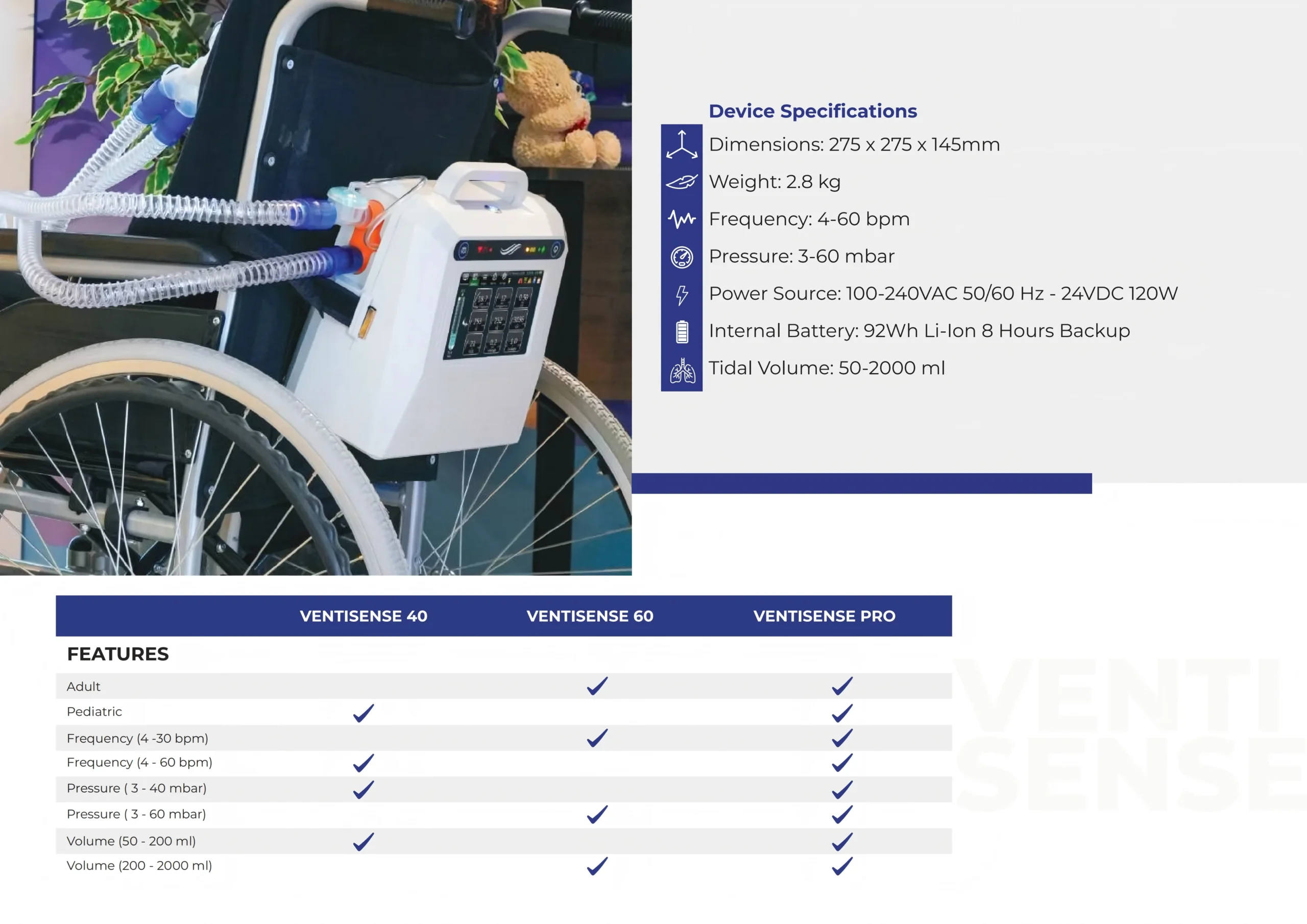

PRODUCT SPECIRICATIONS




Dimensions

275 x 275 x145mm

Weight

2.8 kg

Frequency

4-60 bpm

Pressure

3-60 mbar

Power Source

100-240VAC 50/60 Hz – 24VDC 120W

Internal Battery

92Wh Li-lon 8 Hours Backup

Tidal Volume

50-2000 ml
